ATR-FTIR spectra

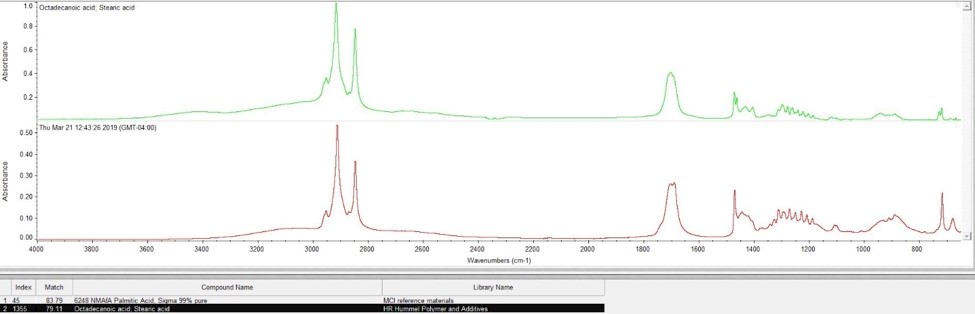

ATR-FTIR spectra of a segment of waxy exudate (red spectrum) from the chinstrap loop on the PL side of the helmet matched with a reference spectrum of steric acid (green spectrum).
Zoom in on the image Zoom    Download this file Download

Figure 9: ATR-FTIR spectra of a segment of waxy exudate (red spectrum) from the chinstrap loop on the PL side of the helmet matched with a reference spectrum of steric acid (green spectrum). Spectra courtesy of Thomas Lam, Smithsonian MCI. Spectrum collected with a Thermo Nicolet 6700 FTIR spectrometer with Golden Gate ATR.
